PD Compressor

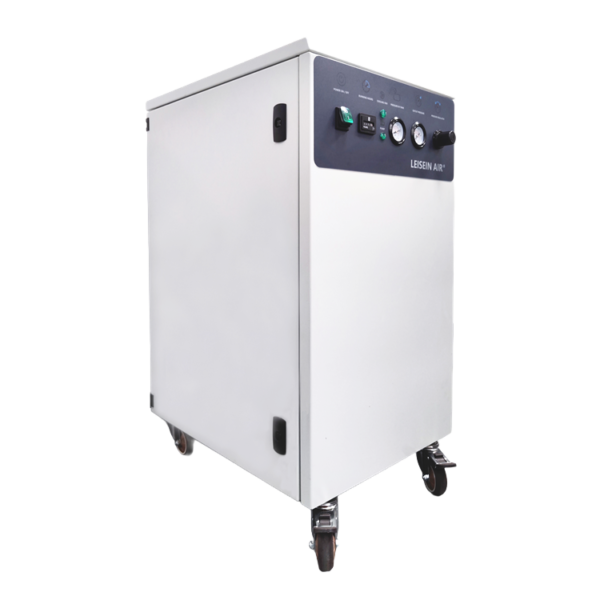

PD80GS-30CF – Silent Oil Free Compressor with Acoustic Cabinet

LEISEIN compressors are engineered with ideal features to meet the demanding needs of laboratory applications.

PD80GS-30CF compressor deliver 80 L/min of pure, oil-free air with ultra-quiet 58 dB performance. Featuring a coated 30L receiver and 100% duty cycle, this compact unit ensures contamination-free, uninterrupted operation for sensitive lab instruments with minimal maintenance.

Category: Tag:

DESCRIPTION

• 5 um air filter
• Pressure regulator included
• Receiver with internal coating
• Automatic drain for the receiver

FEATURES

• Oil-free plug-and-play compressor unit ready for connection
• 100% duty cycle
• Compact and easy to use
• Quiet operation
• Easy maintenance
• Automatic condensate evaporation

PRODUCT SPECIFICATTIONS

• Displacement:   80 l/min
• Air flow @ 8 bar:   28 l/min
• Max. pressure:   8 bar
• Motor:   0.37 kW
• Voltage:   220V-1PH
• Frequency:   50 Hz
• Receiver volume:   30 Litres
• Noise level:   58 dB(A)
• Duty cycle:   100%
• Weight:   71 kg
• Dimensions (LxWxD):   86.5 x 44 x 61 cm

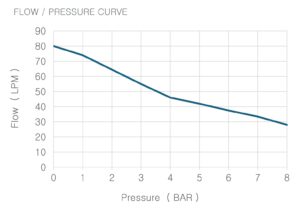

FLOW / PRESSURE CURVE
